Vacuum Emulsifying Mixer Machine for Cosmetics Production

FOB Reference Price:Get Latest Price
$15,000.00 - $19,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ZJR-100/150/200
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Specification customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
YK
Voltage:
220V/380V
Application:
Viscous Fluid
Certification:
CE, ISO
Product Type:
Cosmetic
Mixer Type:
Homogenizer
Dimension(L*W*H):
1400mm*600mm*1950mm
Max. Loading Capacity:
160L
After-sales Service Provided:
Engineers available to service machinery overseas
Material:
Stainless Steel 304 / SUS316L
Control:
Botton/PLC
Model Number:
ZJR-200
Name:
Vacuum Emulsifying Mixer Machine for Cosmetics Production
Power(W):
0.75KW~45KW
Warranty:
1 Year
Supply Ability
Supply Ability:
500 Set/Sets per Year Vacuum Emulsifying Mixer Machine for Cosmetics Production
Packaging & Delivery
Packaging Details
Plywood case
Vacuum Emulsifying Mixer Machine for Cosmetics Production
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description


Vacuum Emulsifying Mixer Machine for Cosmetics Production

Features:
The pot cover is automatic lift type, the material was directed draw into the emulsifying boiler from oil boiler and water boiler based on a pipe that is under vacuum, the discharge is based on the turn the emulsifying boiler. And the heating system is electric heating or steam heating that the temperature is automation control. Put the cool water into the intercalated bed so cooling the material, simple operation and safety( at the outside have a warm layer). The homogenizer and the blade stirring can together work or separate work. The material sliming, emulsification, mixing, dispersing, etc. what will finished during short time. Contact position adopt high-quality stainless steel (medical use adopt 316L material make with supplies, polish mirror of interior surface, mix the hygiene of the device in vacuum, it accords with the normal hygiene standard manufacture of GMP to adopt that is most ideal production equipment.

Working Principle

There are three pots : Main pot (Emulsifying pot) and preparatory pots (Water pot and Oil pot).

The water pot and oil pot are preparatory pots. For products which need emulsifying, the raw materials are always including water phase material and oil phase material, so the water pot is for preparation of water phase materials, and oil pot is for preparation of oil phase materials. The two pots both have jacket layer, which can be heated by electrical heating or steam . Meanwhile, the two pots equip with mixing system. The mixing system is dispersing disk with speed of 1400 rpm. After preparing (feeding, heating, mixing), the raw materials in these two pots can be absorbed into the main pot (emulsifying pot) by the power of vacuum through pipeline.

Technology Parameter
Name
ZJR-100
ZJR-150
ZJR-200





Emulsifying Pot
Design Volume (L)
100
150
200
Working Capacity (L)
80
120
160
Scraper Stirring Power (kw)
1.5
1.5
2.2
Scraper Stirring Speed (rpm)
0-86
0-86
0-65
Homogenizer Power (kw)
3
4
4
Electrical Heating Power (kw)
6
6
8
Homogenizer Speed (rpm)
2800
2800
2800



Water Pot
Design Volume (L)
60
100
120
Working Capacity (L)
45
80
95
Power (kw)
0.55
0.55
0.75
Speed (rpm)
1400
1400
1400
Electrical Heating Power (kw)
4
6
8



Oil Pot
Design Volume (L)
45
75
100
Working Capacity (L)
35
60
80
Power (kw)
0.55
0.55
0.75
Speed (rpm)
1400
1400
1400
Electrical Heating Power (kw)
4
6
8

Dimension
Emulsifying (Length*Width*Height)
1750*650*(2150-2850)
1900*780*(2380-3000)
1450*600*(2650-3500)
Water Pot and Oil Pot(Length*Width*Height)
1220*610*1300
1170*710*1500
1550*820*1520



ღ Product Details:


ღ Application:

Company Information

Wuxi YK Automation Technology Co., Ltd. was developed from a mixer manufacturer-Wuxi Jianuo Delicate Chemical Equipment Factory, YK is specialized in designing, developing and manufacturing mixers especial vacuum homogenizing unit with about 20 years' history. On the basis of rich experience in manufacturing, YK increases technology and production capacity greatly with introduced European and North American technology. Up to now, we have developed various world-class machines which sell well both in domestic and international markets. We have gained a high reputation from our customers.


ღ Our Certification & Honor:


ღ Our Market:


ღ Our Suppliers:


More than 85% of purchased parts come from top suppliers, such as ABB, SIEMENS...

ღ Our Customers:


We cooperate with many famous customers over 10 years.

Factory

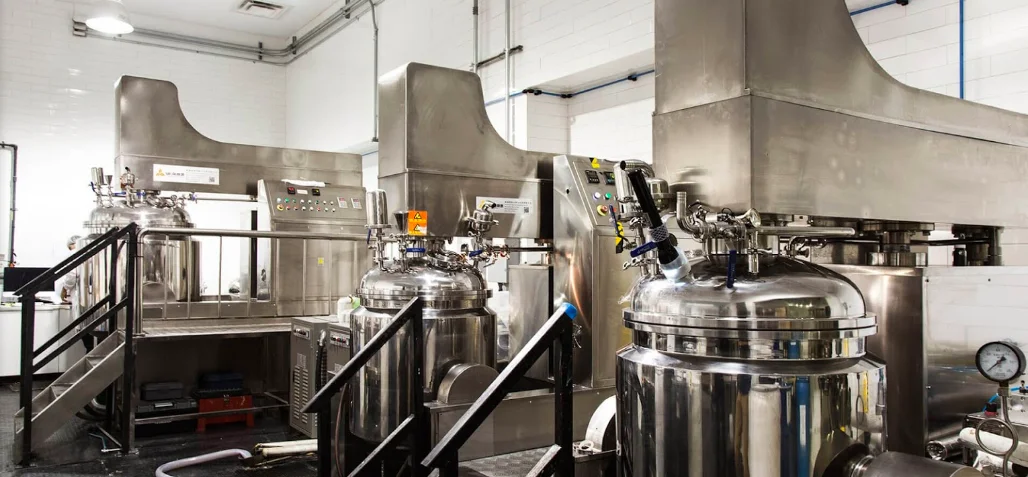

Mixing Machine Manufacturing Plant

Filling Machine Manufacturing Plant

ღ Production Capacity

Every year, we have made 200 sets of vacuum homogenizing emulsifiers, 50 sets of planetary mixers, more than 300 sets of various types of stirred reactors, 150 sets of filling machines, and about 10 production lines.


ღ R & D capabilities

Our technology is the result of years of research and improvement. Over the past 18 years, YK has seized the historical opportunities brought about by China's reform and opening up and the rapid development of manufacturing, adheres to the customer-centered, strive-oriented, and continues to innovate based on customer needs.

Every year, we invest more than 10% of our sales revenue in research and development. We must continue to upgrade every year, and we must have a new development path in 2 years.


Address: No.2855 Jiaoyang Road, An Zhen, Wuxi, Jiangsu, China

Packing & Shipping

ღ Packaging:

packing by wooden case usually, we also do other packaging as per customer's requirement.

ღ Shipping:

European Countries: 22-28 days
United States: East --13-16 days, West--21-28 days
Brazil: 30-40 days
Russia: 36 days
Asia Countries: 3-5days

FAQ

1. Why your machine similar with other supplier?


We are an overseas-funded enterprise. We are manufacturer and had been in this industry for more than 17 years, with more than 9 years export experience. We design machines by ourselves with advanced technology. Appearance just a part of machine, Service and quality is more important than it.

2. I'm new in our industry, but I'm planning to set up a factory, What can I do?

We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.

3. The machine is suitable for the production of?

We could offer various kinds of machines and whole production line.

(1) Cream, paste Products,

In cosmetic industry: face cream, body cream, washing cream,vaseline etc
In food industry industry: sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc
In chemical industry:welding paste,ink, paint,pigment etc.
Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc

(2) Liquid products

shampoo, lotion, liquid soap, detergent, juice,solution, etc.

Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc

(3) Make-up products:

Lipstick, lip gloss, nail polish, marscara etc

Machines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc

(4) Adhesive products:

Instant glue, AB glue, silica gel, anaerobic adhesive,silicon, sealing etc.

Machines for them: double planet mixer, ribbon blender, tube filling and sealing machine, hydraulic distributing machine, cartridge filling machine, etc.



ღ For your inquiries, pls kindly let us know:

1. What is your products? Cream, toothpaste, moisturizer, face cream, etc.

2. What is the capacity do you want for this vacuum emulsifying machine? 5L, 10L, 30L, 50L, 100L, 150L, 200L, etc.

3. Required heating method: electric heating or steam heating?

4. Required voltage and frequency of power supply? eg:380V 50Hz 3phase?

5. Requirement of Certificate (CE, CSA, or no need)


Introduced here is just a small part of the product function,


If you are interested, do not hesitate to contact us.

We will be sure to make you satisfied!!!



↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
