Factory Price Vacuum Emulsifying Mixer Machine for Paste, Homogenizer

FOB Reference Price:Get Latest Price
$37,000.00 - $75,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ZJR-1000
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 99999 >99999
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Specification Customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 Year
Place of Origin:
Jiangsu, China
Brand Name:
YK
Voltage:
can be customized
Application:
Viscous Fluid
Certification:
CE, ISO
Product Type:
Toothpaste
Mixer Type:
Homogenizer
Additional Capabilities:
Heating, Vacuum
Dimension(L*W*H):
3750mm*3620mm*(3230-4700)mm
Max. Loading Capacity:
800L
After-sales Service Provided:
Engineers available to service machinery overseas
Heating method:
Electric Heating
Material:
Stainless Steel 304 / SUS316L
Name:
Factory Price Vacuum Emulsifying Mixer Machine for Paste, Homogenizer
Power(W):
0-79kw
Supply Ability
Supply Ability:
200 Set/Sets per Year Factory Price Vacuum Emulsifying Mixer Machine for Paste, Homoge
Packaging & Delivery
Packaging Details
Wooden case
Factory Price Vacuum Emulsifying Mixer Machine for Paste, Homogenizer
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 99999 >99999
Est. Time(days) 60 To be negotiated
Video Description
Product Description


Factory Price Vacuum Emulsifying Mixer Machine for Paste, Homogenizer
Features:

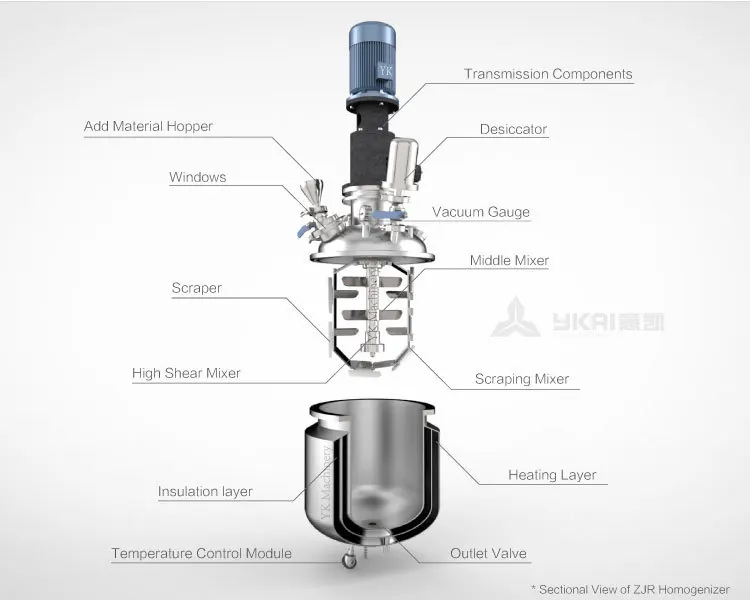

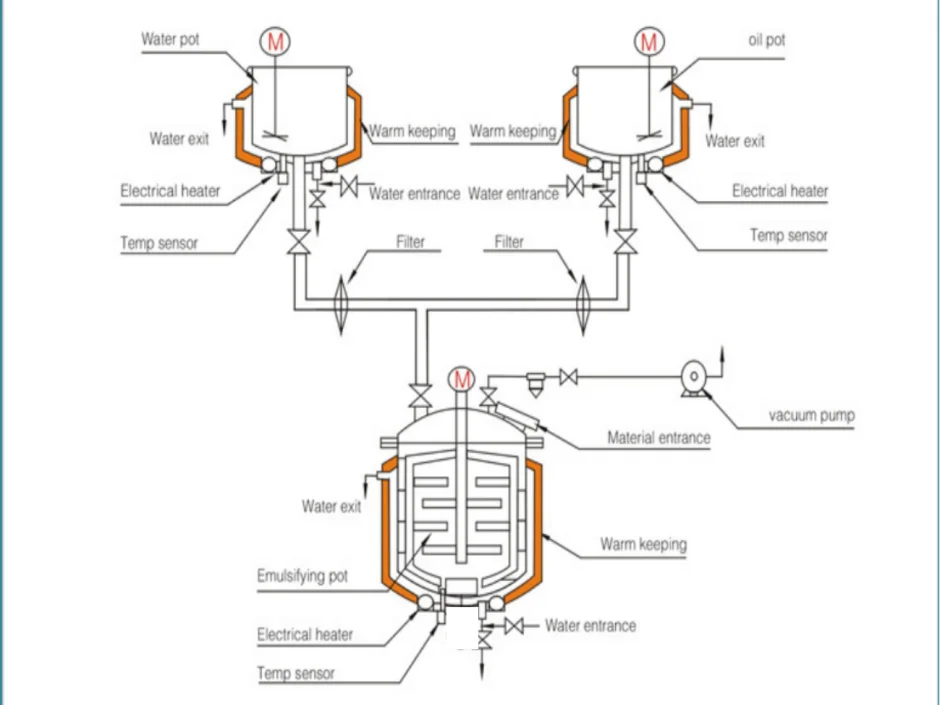

The pot cover is automatic lift type, the material was directed draw into the emulsifying boiler from oil boiler and water boiler based on a pipe that is under vacuum, the discharge is based on the turn the emulsifying boiler. And the heating system is electric heating or steam heating that the temperature is automation control. Put the cool water into the intercalated bed so cooling the material, simple operation and safety( at the outside have a warm layer). The homogenizer and the blade stirring can together work or separate work. The material sliming, emulsification, mixing, dispersing, etc. what will finished during short time. Contact position adopt high-quality stainless steel (medical use adopt 316L material make with supplies, polish mirror of interior surface, mix the hygiene of the device in vacuum, it accords with the normal hygiene standard manufacture of GMP to adopt that is most ideal production equipment.


ღ Features:


Technology Parameter
NAME
ZJR-1000
ZJR-1300
ZJR-2000
Emulsifying pot
Design Volume(L)
1000
1300
2000
Capacity(L)
800
1000
1600
Scraper Stirring Power(kw)
4
4
7.5
Scraper Stirring Speed(rpm)
0-45
0-45
0-45
Homogenizer power(kw)
15
18.5
30
Electrical heating power(kw)
24
24
30
Homogenizer speed (rpm)
2800
2800
2800
Water pot
Design Volume(L)
650
800
1200
Capacity(L)
500
650
1000
power(kw)
1.5
1.5
2.2
speed(rpm)
960
960
960
Electrical heating power(kw)
18
18
24
Oil pot
Oil pot
500
650
950
Capacity (L)
400
500
760
power (kw)
1.5
1.5
2.2
speed (rpm)
960
960
960
Electrical heating power (kw)
18
18
24

Name
ZJR-1000
ZJR-1300
ZJR-2000
Length
(mm)
Width
(mm)
Height
(mm)
Length
(mm)
Width
(mm)
Height
(mm)
Length
(mm)
Width
(mm)
Width
(mm)
Emulsifying Pot Rack
2700
1350
3230-4700
2800
1500
2960-4560
3250
1250
3300-4800
Water Pot and Oil Pot Rack
2700
1250
2150
2800
1320
2200
3250
1600
2225
Table
2700
850
2400
850
3250
1500
Overall
3750
3620
3230-4700
4900
3320
2960-4560
4800
4400
3300-4800



ღ Product Details:

Company Information

Wuxi YK Automation Technology Co., Ltd. was developed from a mixer manufacturer-Wuxi Jianuo Delicate Chemical Equipment Factory, YK is specialized in designing, developing and manufacturing mixers especial vacuum homogenizing unit with about 20 years' history. On the basis of rich experience in manufacturing, YK increases technology and production capacity greatly with introduced European and North American technology. Up to now, we have developed various world-class machines which sell well both in domestic and international markets. We have gained a high reputation from our customers.


ღ Our Certification & Honor:


ღ Our Market:


ღ Our Suppliers:


More than 85% of purchased parts come from top suppliers, such as ABB, SIEMENS...

ღ Our Customers:


We cooperate with many famous customers over 10 years.

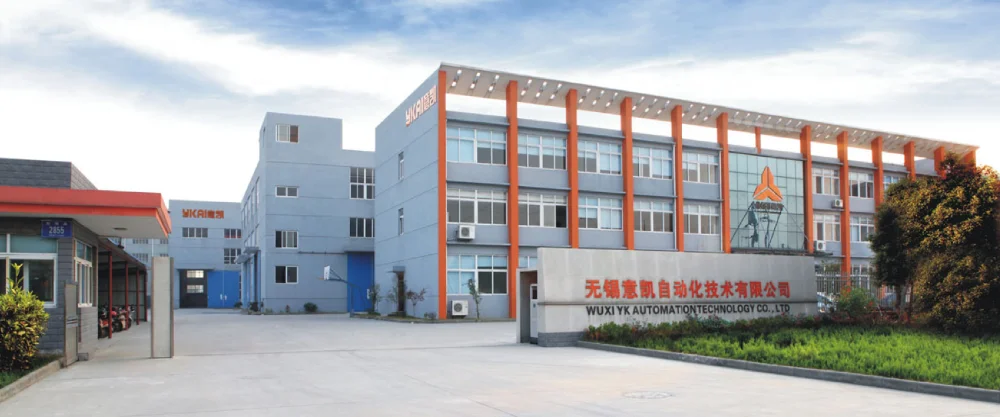

Factory

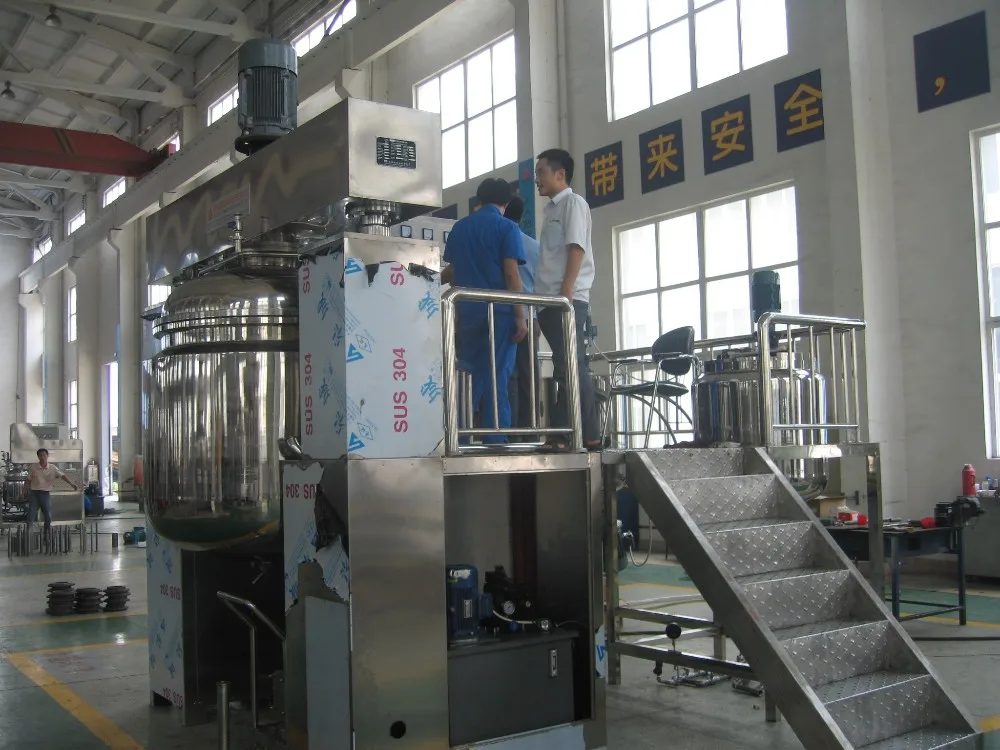

Mixing Machine Manufacturing Plant

Filling Machine Manufacturing Plant

ღ Production Capacity

Every year, we have made 200 sets of vacuum homogenizing emulsifiers, 50 sets of planetary mixers, more than 300 sets of various types of stirred reactors, 150 sets of filling machines, and about 10 production lines.


ღ R & D capabilities

Our technology is the result of years of research and improvement. Over the past 18 years, YK has seized the historical opportunities brought about by China's reform and opening up and the rapid development of manufacturing, adheres to the customer-centered, strive-oriented, and continues to innovate based on customer needs.

Every year, we invest more than 10% of our sales revenue in research and development. We must continue to upgrade every year, and we must have a new development path in 2 years.


Address: No.2855 Jiaoyang Road, An Zhen, Wuxi, Jiangsu, China

Packing & Shipping

ღ Packaging:

packing by wooden case usually, we also do other packaging as per customer's requirement.

ღ Shipping:

European Countries: 22-28 days
United States: East --13-16 days, West--21-28 days
Brazil: 30-40 days
Russia: 36 days
Asia Countries: 3-5days

Our Service

Warranty time:
one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.

Commissioning services:
the product's installation and commissioning at the demand side, our engineers will not leave there untill get your agreement.

Training services:
our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.

Maintenance services:
any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.

Lifelong services:
we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.

Certificate services:
we can provide related certificates to customers freely according to the request of customers.

Inspection services:
you can ask the third part inspection company or your inspector to inspect the products before shipment.

The file:
the Manual Specification, report of the material which used to the equipment and others documents related to the GMP authentication information will be provided by us.

FAQ

1. Why your machine similar with other supplier?


We are an overseas-funded enterprise. We are manufacturer and had been in this industry for more than 17 years, with more than 9 years export experience. We design machines by ourselves with advanced technology. Appearance just a part of machine, Service and quality is more important than it.

2. I'm new in our industry, but I'm planning to set up a factory, What can I do?

We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.

3. The machine is suitable for the production of?

We could offer various kinds of machines and whole production line.

(1) Cream, paste Products,

In cosmetic industry: face cream, body cream, washing cream,vaseline etc
In food industry industry: sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc
In chemical industry:welding paste,ink, paint,pigment etc.
Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc

(2) Liquid products

shampoo, lotion, liquid soap, detergent, juice,solution, etc.

Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc

(3) Make-up products:

Lipstick, lip gloss, nail polish, marscara etc

Machines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc

(4) Adhesive products:

Instant glue, AB glue, silica gel, anaerobic adhesive,silicon, sealing etc.

Machines for them: double planet mixer, ribbon blender, tube filling and sealing machine, hydraulic distributing machine, cartridge filling machine, etc.



ღ For your inquiries, pls kindly let us know:

1. What is your products? Cream, toothpaste, moisturizer, face cream, etc.

2. What is the capacity do you want for this vacuum emulsifying machine? 5L, 10L, 30L, 50L, 100L, 150L, 200L, etc.

3. Required heating method: electric heating or steam heating?

4. Required voltage and frequency of power supply? eg:380V 50Hz 3phase?

5. Requirement of Certificate (CE, CSA, or no need)



Introduced here is just a small part of the product function,


If you are interested, do not hesitate to contact us.

We will be sure to make you satisfied!!!



↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
