ZJR-30,50,100,150,200 Vacuum Emulsifying Mixer, Hot Sell China Machine, sauce making machine

FOB Reference Price:Get Latest Price
$1,000.00 - $20,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ZJR-150
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Custom specifications (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
Place of Origin:
Jiangsu, China
Brand Name:
YK
Voltage:
110~480v
Application:
Viscous Fluid
Certification:
CE,ISO9001,GMP, CE certificate
Product Type:
Sauce, mayonnaise, Soap, cosmetics
Mixer Type:
Homogenizer
Additional Capabilities:
Emulsifying,mix,heating,cooling
Dimension(L*W*H):
1900*780*(2380-3000)mm
Max. Loading Capacity:
120L
After-sales Service Provided:
Engineers available to service machinery overseas
material:
stainless steel (SUS304,SUS316L)
lifting:
hydraulic lift
working state::
vacuum
pressure:
-0.09Mpa
Processing:
Mixer
Heating medium:
Waterl/oil
control:
button/plc
standard:
GMP
Power(W):
24600
Supply Ability
Supply Ability:
100 Set/Sets per Week
Packaging & Delivery
Packaging Details
plywood case for ZJR-150 laundry soap making machine,laundry soap mixer,laundry soap filling machine.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 To be negotiated
Product Description

Application:

● Cosmetics & Toiletries: cream, lotion, wax, mascara, gel, toothpaste
● Pharmaceuticals: ointment, dental composite, syrup, injection
● Food: mayonnaise, dressing, jam, butter, margarine, wasabi
● Chemicals: polyester, synthetic fiber, shoe cream

Working Elements:

After the materials are heated & mixed in water pot and oil pot, they are drawn into the emulsifying boiler by the vacuum pump. Adopting the middle stirrer & Teflon scrapers, the emulsifying boiler can sweep the residues on the wall of the boiler. Then the materials are cut off, compressed and folded by the blades. By the strong cutting off force and the impact and turbulent current from the high-speed shear wheel and fixed cutting case, the materials are cut off and turned to particles of 200 nm- 2 um promptly. Because the emulsifying boiler is under vacuum state, the bubbles that are produced in the course of mixing will be taken away in time.

Features:

The pot cover is of automatic rising type. The material is directly drawn into the emulsifying boiler from oil boiler and water boiler. The discharge is based on the turning of the emulsifying boiler. And the heating system is electric heating and steam heating by the heating pipe, so the temperature is controlled automatically. Put the cool water into the intercalated bed so as to cool the material, which is simple and convenient (there is a warm layer outside the intercalated bed). The homogenizer and the stirring blades can work together or separately. The material sliming, emulsification, mixing, dispersing, etc. can be finished in a short time. Some parts of the machine are made of high-quality stainless steel (316L material will be adopted for medical use; the interior surface adopts mirror polish, vacuum agitating device is hygienically made according to the normal hygiene standard of GMP and is the most idea production equipment).

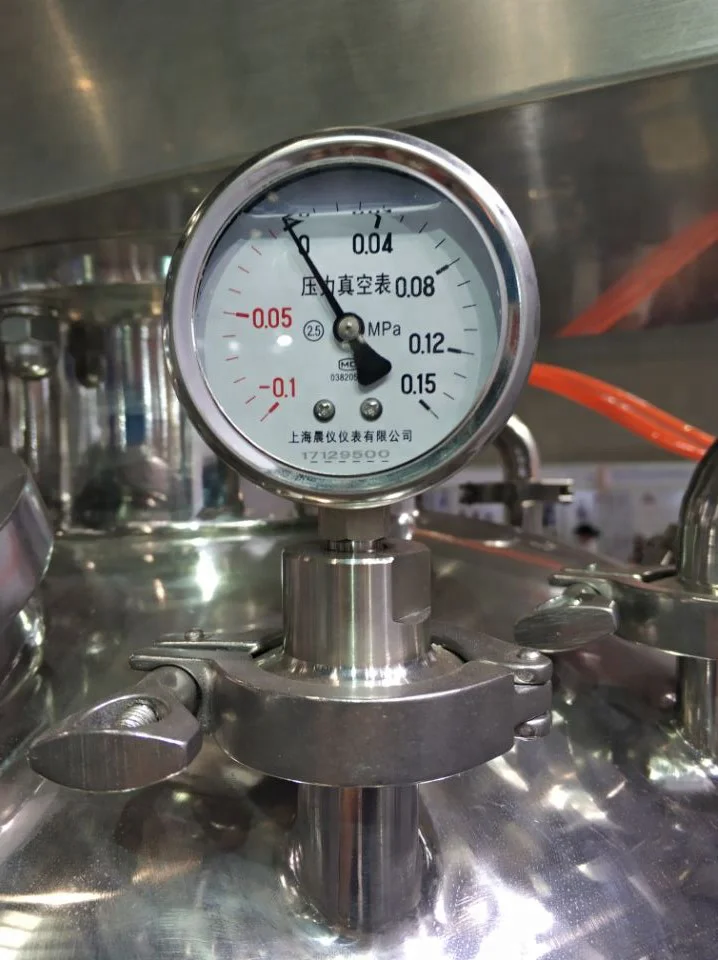

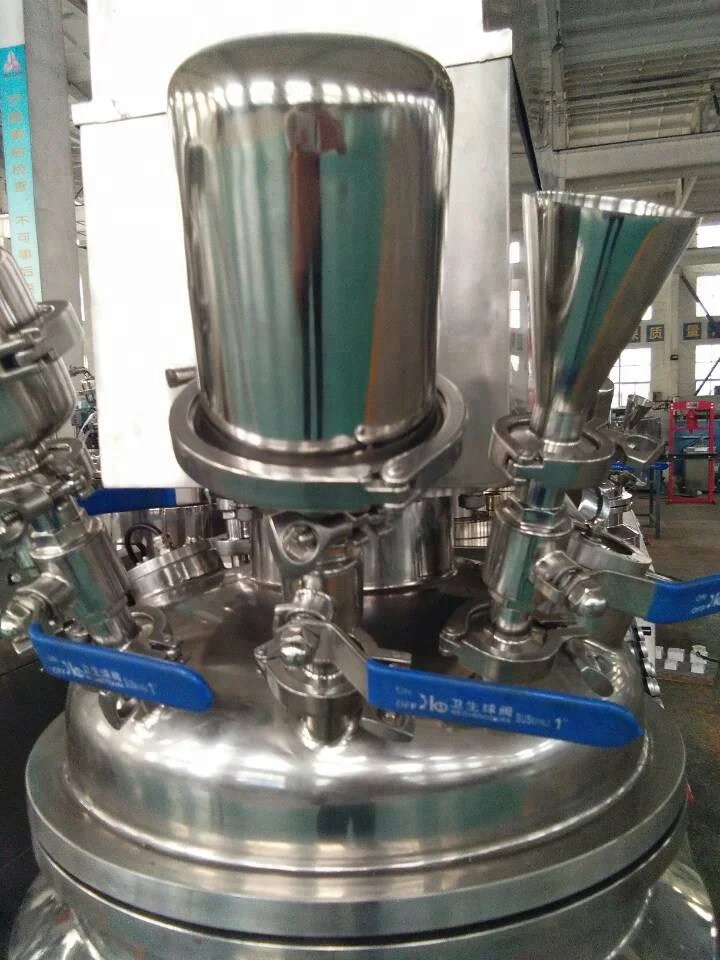

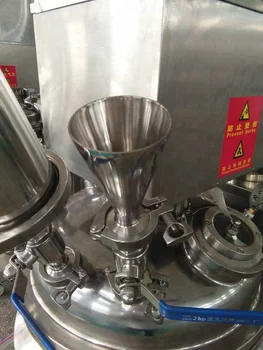

Detailed Images

Technical Parameters

NAME
ZJR-30
ZJR-50
ZJR-100
ZJR-150
ZJR-200
Emulsifying pot
Design Volume(L)
30
50
100
150
200
Capacity(L)
25
40
80
120
160
Scraper Stirring Power(kw)
0.75
1.1
1.5
1.5
2.2
Scraper Stirring Speed(rpm)
0-86
0-86
0-86
0-86
0-86
Homogenizer power(kw)
1.5
1.5
3
4
4
Electrical heating power(kw)
2
2
6
6
8
Homogenizer speed (rpm)
2800
2800
2800
2800
2800
Water pot
Design Volume(L)
25
38
60
100
120
Capacity(L)
20
30
45
80
95
Power(kw)
0.55
0.55
0.55
0.55
0.75
Speed(rpm)
1400
1400
1400
1400
1400
Electrical heating power(kw)
2
2
4
6
8
Oil pot
Design Volume (L)
17.5
25
45
75
100
Working Capacity (L)
14
20
35
60
80
power(kw)
0.55
0.55
0.55
0.55
0.75
speed(rpm)
1400
1400
1400
1400
1400
Electrical heating power (kw)
2
2
4
6
8
Dimension
Emulsifying (Length X Width X Height)mm
1400×600×(1900~2400)
1450×600×(1950~2500)
1750*650*(2150-2850)
1900*780*(2380-3000)
1450*600*(2650-3500)
Water boiler and Oil boiler (Length X Width X Height)
880×510×1050
950×550×1100
1220*610*1300
1220*610*1300
1550*820*1520
Our Customers

These are some of the companies/brands who have chosen our product, service to enhances their product quality and production efficiency.

Our products have been exported to more than 143 countries and regions in the world.

Our Supply Chain

In order to provide customers with the best quality products, more than 85% of our equipment outsourcing parts from the world's top suppliers.

Honor & Certificates

Honor results from diligence.Each approbatory professional certificate is the fruit of diligence and perseverancefor YK people.Praise and honor is not only our business card and pass card but also our route sign and experience.

Our Service

Warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.

Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there untill get your agreement.

Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.

Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.

Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.

Certificate services: we can provide related certificates to customers freely according to the request of customers.

Inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment.

The file: the Manual Specification, report of the material which used to the equipment and others documents related to the GMP authentication information will be provided by us.
