ZJR-30 vacuum emulsifying mixer for cosmetic,cream making machine, lotion equipment

FOB Reference Price:Get Latest Price
$7,000.00 - $14,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ZJR-30
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 45 >45
Est. Time(days) 1 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Custom specifications (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
Place of Origin:
Jiangsu, China
Brand Name:
YK
Voltage:
380V,50HZ
Application:
Viscous Fluid
Certification:
CE,ISO,3C,TUV
Product Type:
Cosmetic,cream,lotion,shampoo
Mixer Type:
Homogenizer
Additional Capabilities:
shear mixing and emulsifying
Dimension(L*W*H):
1400*600*(1950-2500)mm
Max. Loading Capacity:
25L
After-sales Service Provided:
Engineers available to service machinery overseas
material:
stainless steel (SUS304,SUS316L)
control:
button/plc
standard:
GMP
function:
mixing and emulsion
effect:
vacuum,no bubbles
Mixing speed:
0-2800rpm
Product name:
Homogenizing Emusifying Machine
Power(W):
12KW
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
plywood case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 45 >45
Est. Time(days) 1 To be negotiated
Video Description
Product Description



ZJR-30 vacuum emulsifying mixer for


cosmetic,cream making machine, lotion


equipment



Application:

● Cosmetics & Toiletries: cream, lotion, wax, mascara, gel, toothpaste
● Pharmaceuticals: ointment, dental composite, syrup, injection
● Food: mayonnaise, salad dressing, casda sauce, west point sauce
● Chemicals: polyester, synthetic fiber, shoe cream

Working Elements:

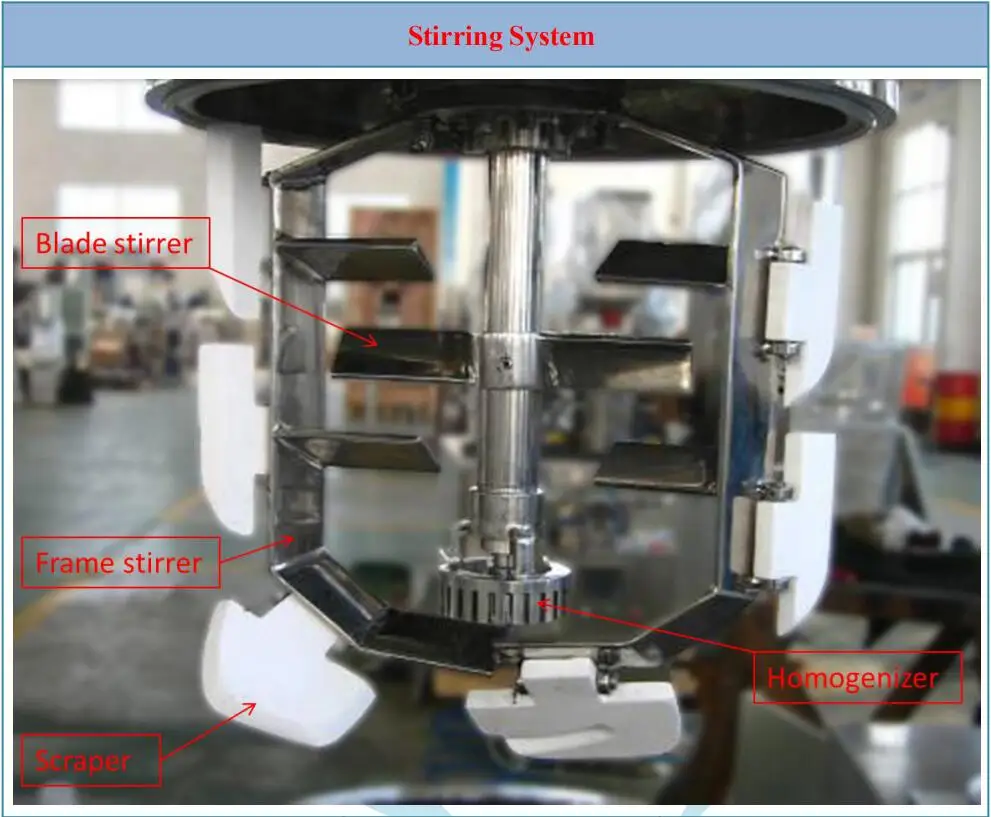

After the materials are heated & mixed in water pot and oil pot, they are drawn into the emulsifying boiler by the vacuum pump. Adopting the middle stirrer & Teflon scrapers, the emulsifying boiler can sweep the residues on the wall of the boiler. Then the materials are cut off, compressed and folded by the blades. By the strong cutting off force and the impact and turbulent current from the high-speed shear wheel and fixed cutting case, the materials are cut off and turned to particles of 200 nm- 2 um promptly. Because the emulsifying boiler is under vacuum state, the bubbles that are produced in the course of mixing will be taken away in time.

Features:

The pot cover is of automatic rising type. The material is directly drawn into the emulsifying boiler from oil boiler and water boiler. The discharge is based on the turning of the emulsifying boiler. And the heating system is electric heating and steam heating by the heating pipe, so the temperature is controlled automatically. Put the cool water into the intercalated bed so as to cool the material, which is simple and convenient (there is a warm layer outside the intercalated bed). The homogenizer and the stirring blades can work together or separately. The material sliming, emulsification, mixing, dispersing, etc. can be finished in a short time. Some parts of the machine are made of high-quality stainless steel (316L material will be adopted for medical use; the interior surface adopts mirror polish, vacuum agitating device is hygienically made according to the normal hygiene standard of GMP and is the most idea production equipment).

Detailed Images

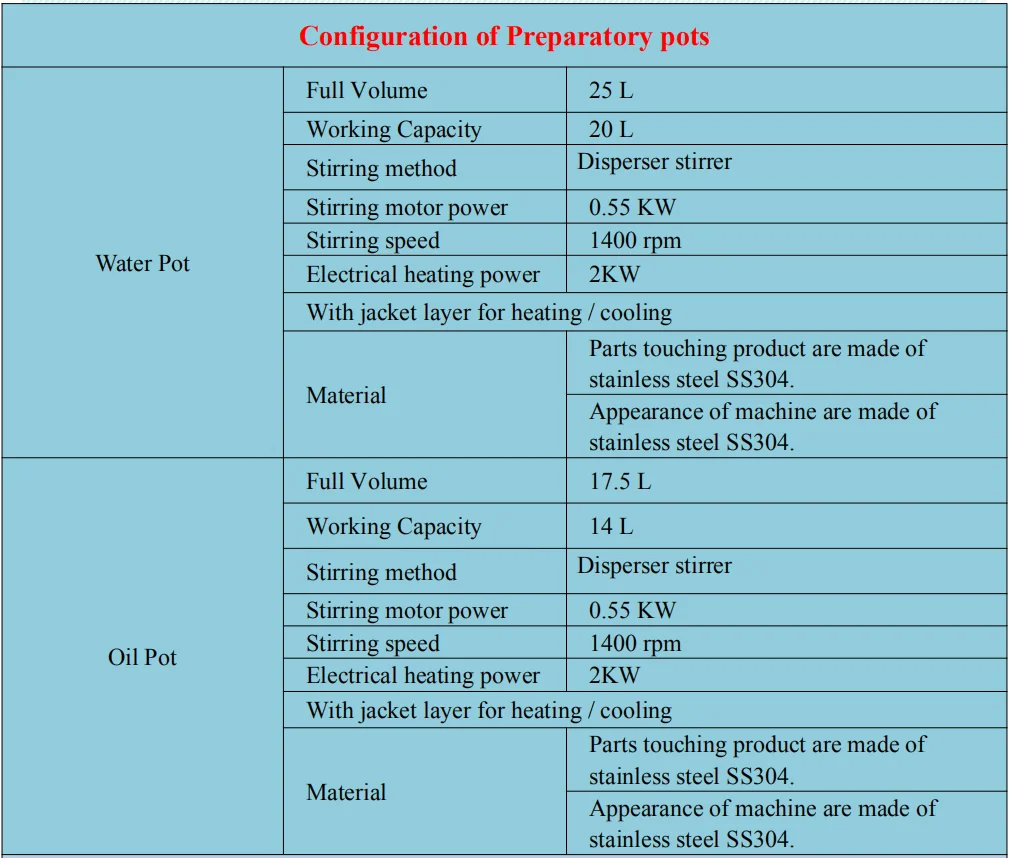

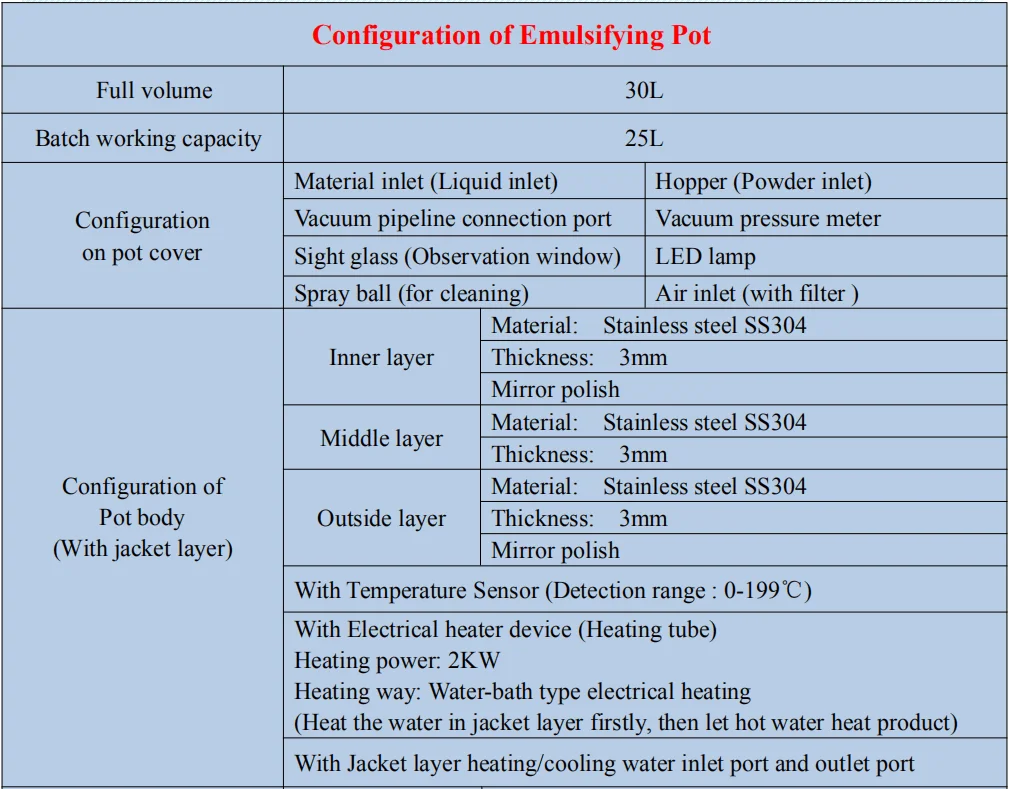

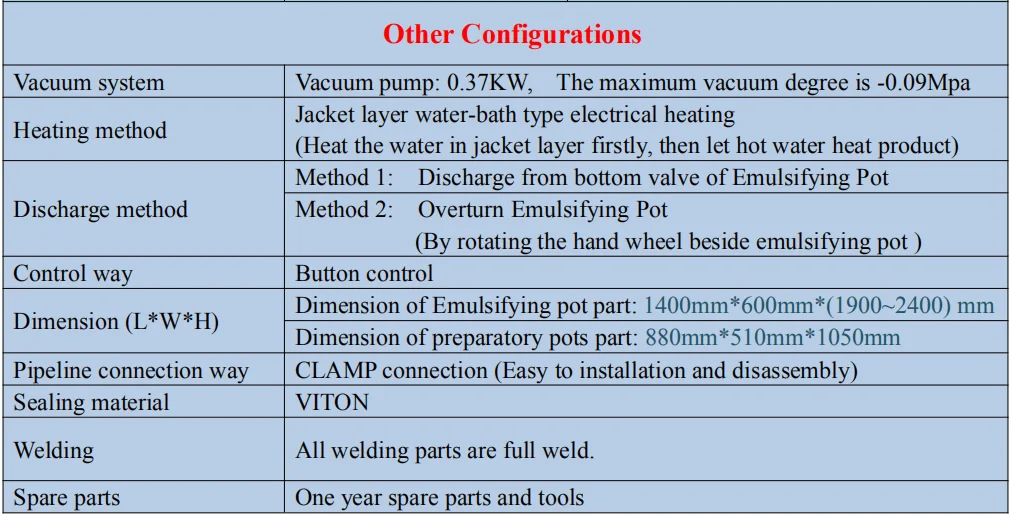

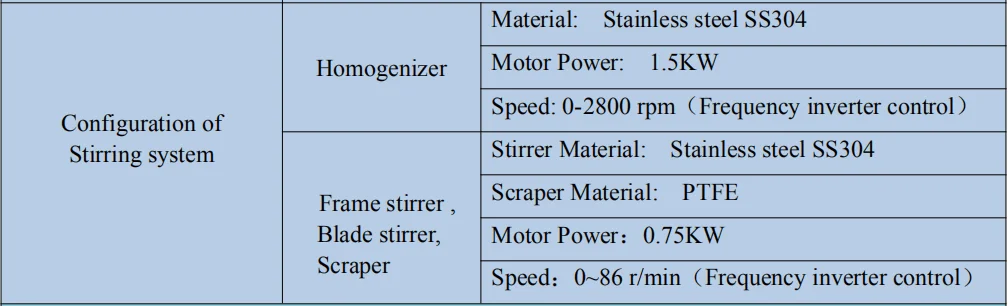

Technical Parameters
Company Information


Click below to know more about us



How to come to YK

Line 1: TAXI
Line 2: High speed rail
Shanghai International Airport(Pudong)
Shanghai HongQiao railway station---Wuxi Dong railway station
Cost(USD): 70
Cost(USD): 20
Time: 2 hours
Time: 1 hour


We Warmly Welcome Your Visiting


Packaging & Shipping

Packaging:

packing by wooden case usually,we also do other packaging as per customer's requirement.


Shipping:

● European Countries: 22-28 days
● United States: East --13-16 days, West--21-28 days
● Brazil: 30-40 days
● Russia: 36 days
● Asia Countries: 3-5days

FAQ

1. Why your machine similar with other supplier?
We are an overseas-funded enterprise. We are manufacturer and had been in this industry for more than 17 years, with more than 9 years export experience. We design machines by ourselves with advanced technology. Appearance just a part of machine, Service and quality is more important than it.
2. I'm new in our industry, but I'm planning to setup a factory, What can I do?
We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.
3.Why do you choose us?
           ● Select spare parts with high quality and well-known brands only.
           ● We are approved by ISO, CE, GS and etc.
           ● One year warranty; perfect after-sales service for spare parts
           ● Best prices with good quality and reliable performance
           ● Easy maintenance
           ● Our logo or OEM
4.What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line.
(1) Cream, paste Products,

           ● In cosmetic industry: face cream, body cream, washing cream,vaseline etc
           ● In food industry industry: sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc
           ● In chemical industry:welding paste,ink, paint,pigment etc.
Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc.
(2) Liquid products
shampoo, lotion, liquid soap, detergent,juice,solution etc.
Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(3) Make-up products:
Lipstick, lip gloss, nail polish, marscara etc
Machines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc
(4) Adhesive products:
Instant glue, AB glue, silica gel, anaerobic adhesive,silicon, sealing etc.
Machines for them: double planet mixer, ribbon blender, tube filling and sealing machine, hydraulic distributing machine, cartridge filling machine etc


Introduced here is just a small part of the product function,

If you are interested, do not hesitate to contact us.

We will be sure to make you satisfied!!!




↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
