most sold 2018 vacuum emulsifying machine, honey homogenizer, mayonnaise making machine

FOB Reference Price:Get Latest Price
$50,000.00 - $70,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ZJR-1300
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets)
Custom specifications (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 YEAR
Place of Origin:
Jiangsu, China
Brand Name:
YK
Voltage:
220V/380V
Application:
Viscous Fluid
Certification:
CE,ISO9001,GMP
Product Type:
honey,mayonnaise,food,Cosmetics & Toiletries,Pharmaceuticals,Chemicals
Mixer Type:
Homogenizer
Additional Capabilities:
Heating/Vacuum, Dispersing,Heating and Vacuum Mixing
Dimension(L*W*H):
4900*3320*(2960-4560)mm
Max. Loading Capacity:
1000L
After-sales Service Provided:
Engineers available to service machinery overseas
Control:
button/plc
function:
mixing and emulsion
effect:
vacuum,no bubbles
Material:
Stainless Steel 304 / SUS316L
lifting method:
electric/hydraulic
Heating method:
Steam/Electric heating
Heating medium:
Water/Oil/Steam
Mixing speed:
0-2800rpm
Product name:
Homogenizing Emusifying Machine
Power(W):
85KW
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
plywood case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 To be negotiated
Product Description

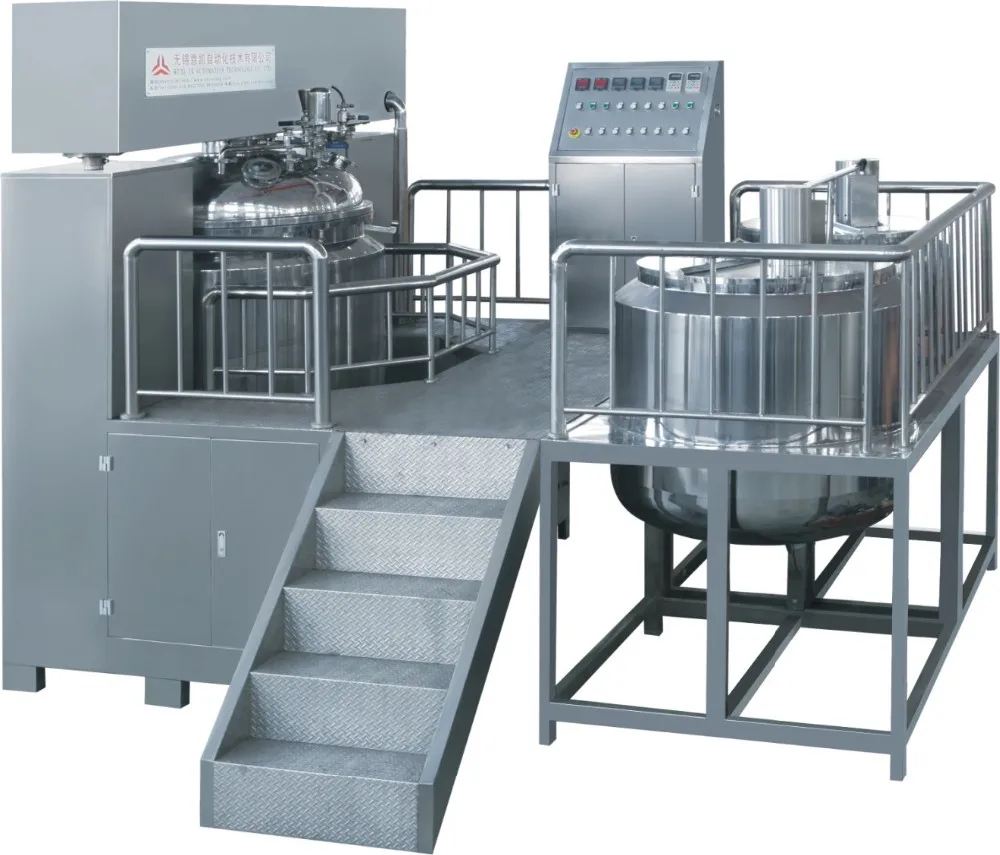

most sold 2018 vacuum emulsifying machine, honey homogenizer, mayonnaise making machine



Application:

● Cosmetics & Toiletries: cream, lotion, wax, mascara, gel, toothpaste
● Pharmaceuticals: ointment, dental composite, syrup, injection
● Food:  mayonnaise, salad dressing, casda sauce, west point sauce
● Chemicals: polyester, synthetic fiber, shoe cream

Working Elements:

After the materials are heated & mixed in water pot and oil pot, they are drawn into the emulsifying boiler by the vacuum pump. Adopting the middle stirrer & Teflon scrapers, the emulsifying boiler can sweep the residues on the wall of the boiler. Then the materials are cut off, compressed and folded by the blades. By the strong cutting off force and the impact and turbulent current from the high-speed shear wheel and fixed cutting case, the materials are cut off and turned to particles of 200 nm- 2 um promptly. Because the emulsifying boiler is under vacuum state, the bubbles that are produced in the course of mixing will be taken away in time.

Features:

The pot cover is of automatic rising type. The material is directly drawn into the emulsifying boiler from oil boiler and water boiler. The discharge is based on the turning of the emulsifying boiler. And the heating system is electric heating and steam heating by the heating pipe, so the temperature is controlled automatically. Put the cool water into the intercalated bed so as to cool the material, which is simple and convenient (there is a warm layer outside the intercalated bed). The homogenizer and the stirring blades can work together or separately. The material sliming, emulsification, mixing, dispersing, etc. can be finished in a short time. Some parts of the machine are made of high-quality stainless steel (316L material will be adopted for medical use; the interior surface adopts mirror polish, vacuum agitating device is hygienically made according to the normal hygiene standard of GMP and is the most idea production equipment).

Technical Parameters

Name
ZJR-1000
ZJR-1300
ZJR-2000
Emulsifying Pot
Design Volume(L)
1000
1300
2000
Working Capacity(L)
800
1000
1600
Scraper Stirring Power(KW)
4
4
7.5
Scraper Stirring Speed(rpm)
0-45
0-45
0-45
Homogenizer Power(KW)
15
18.5
30
Electrical Heating Power(KW)
24
24
30
Homogenizer Speed(rpm)
2800
2800
2800
Water Pot
Design Volume(L)
650
800
1200
Working Capacity(L)
500
650
630
Power(KW)
1.5
1.5
2.2
Speed(rpm)
960
960
960
Electrical Heating Power(KW)
18
18
24
Oil Pot
Design Volume(L)
500
650
950
Working Capacity(L)
400
500
760
Power(KW)
1.5
1.5
2.2
Speed(rpm)
960
960
960
Electrical Heating Power(KW)
18
18
24

 Dimension

Name
ZJR-1000L
ZJR-1300L
ZJR-2000L
Length
Width
Height
Length
Width
Height
Length
Width
Height
Emulsifying Pot Rack(mm)
2700
1350
3230-4700
2800
1500
2960-4560
3250
1250
3300-4800
Water Pot and Oil Pot(mm)
2700
1250
2150
2800
1320
2200
3250
1600
2225
Table(mm)
2700
850
2400
850
3250
1500
Overall(mm)
3750
3620
3230-4700
4900
3320
2960-4560
4800
4400
3300-4800
