Best sold cosmetic cream vacuum emulsifier mixer machine lab use homogenizer high shear

FOB Reference Price:Get Latest Price
$3,000.00 - $8,500.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ZJR-5 Button control ZJR-5 PLC control
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Field maintenance and repair service
Place of Origin:
Jiangsu, China
Brand Name:
Yekeey
Voltage:
220-380V Can be customized
Application:
Viscous Fluid, Medicine Processing, Chemicals Processing, Food Processing, Cosmetic Processing
Certification:
CE,ISO9001
Product Type:
Cosmetic
Mixer Type:
Homogenizer
Additional Capabilities:
Vacuum/Heating
Dimension(L*W*H):
1100*620*1650-1950
Max. Loading Capacity:
5L
Product name:
Homogenizing Emusifying Machine
Material:
Stainless Steel 304 / SUS316L
Function:
Homogenzing/Mixing
Heating method:
Electric/Steam Heating
Control:
PLC/panel
Discharge method:
Tilting
Lifting method:
Electric
Speed:
0-2800rpm
Cleaning method:
Spray balls
Effect:
Easy control/No bubble
Power(W):
5.5KW
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Plywood case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Description

Brief introduction

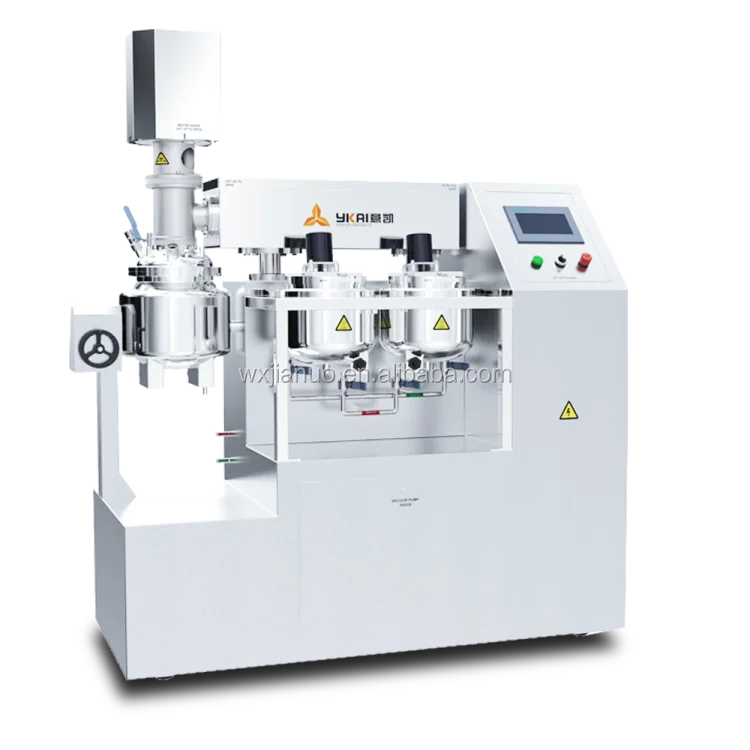

Vacuum Emulsifying Mixer


This machine was designed to mix various kinds of ingredients well through homogenizing big particles in the state of vacuum. It has been tested for thousands of times by making all kinds of products. Our engineers have been working on the improvement all the time based on the accomplishment we achieved currently.We always insist to provide the best to our clients, so we are always willing to customize machines depending on your special needs.


Product Application

ZJR Vacuum Emulsifying Mixer Serious are mainly used to produce the following products:

Chemical

paint,coating,oil,ink

fertilizer,polishes,pigment


Food&Pharmaceutical

ointment,paste,cream

tablet coating

mayonnaise,sauce,dressing,

ingredients,

syrup,beverage,dairy,

Cosmetic&Cleaning products

 face cream, body cream,

lotion,detergent,toothpaste,

surfactant

Formation


Main Features

1) Apply vacuum state so raw materials can be sucked inside and when mixing there will be no bubbles.

2) With three layers each pot can be heated and main pot can be electrically tilted when discharge.

3) Paddle and homogenizer  will work together to homogenize and mix at the same time. Time saved with better effect.

4) Auto control for easy operating,both time and rotating speed can be controlled to  suit different production needs.

5) With spray balls for self-cleaning based on mirror polished SS304 or SS316L(pharmaceutical).

6) Customizing supported.

Working Elements

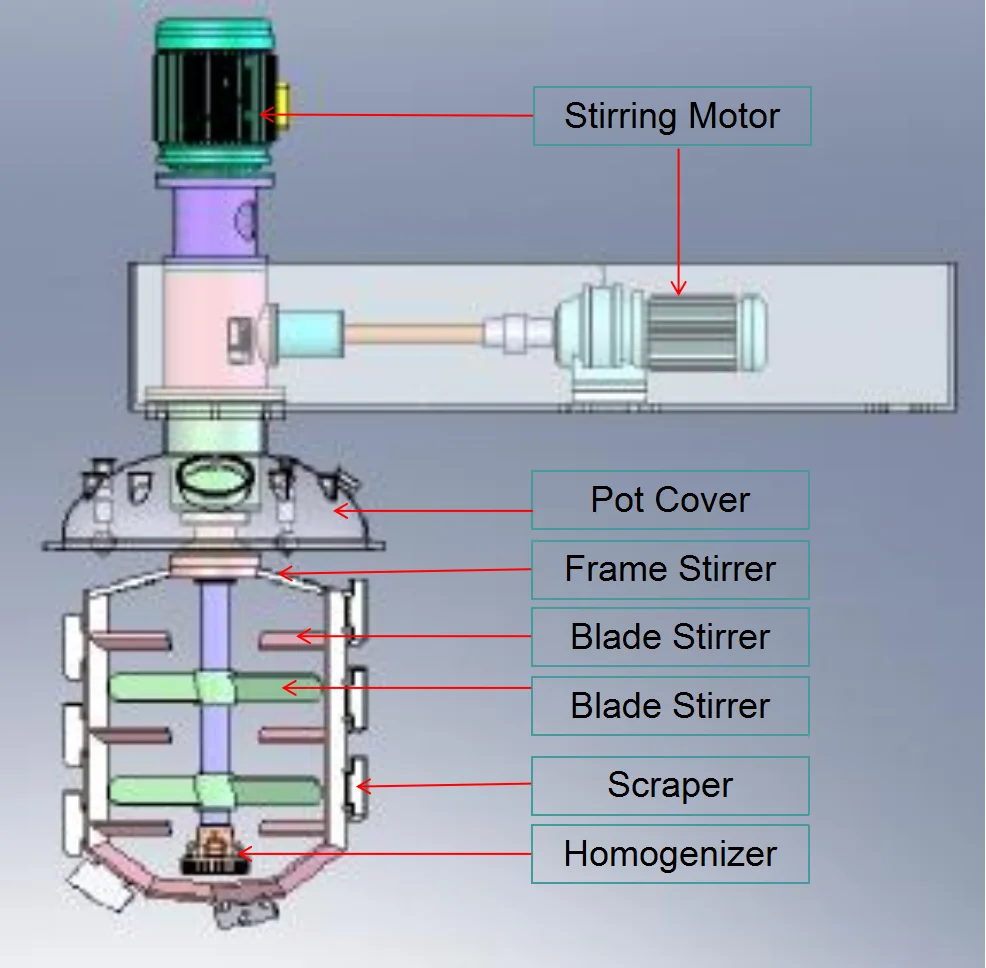

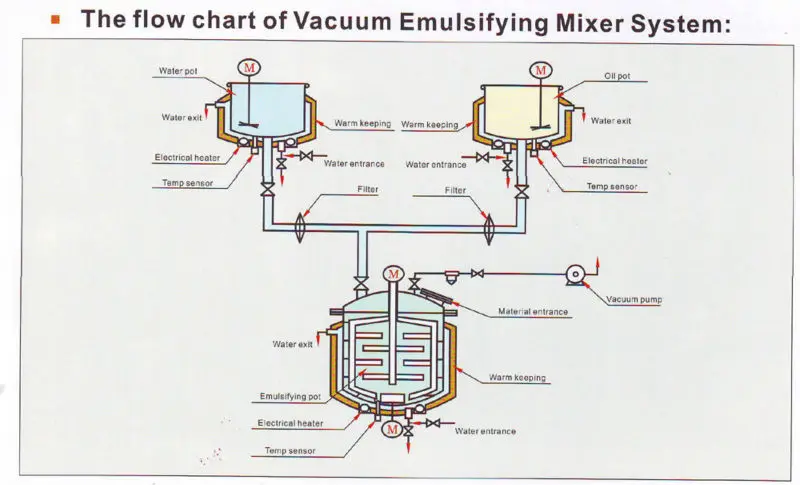

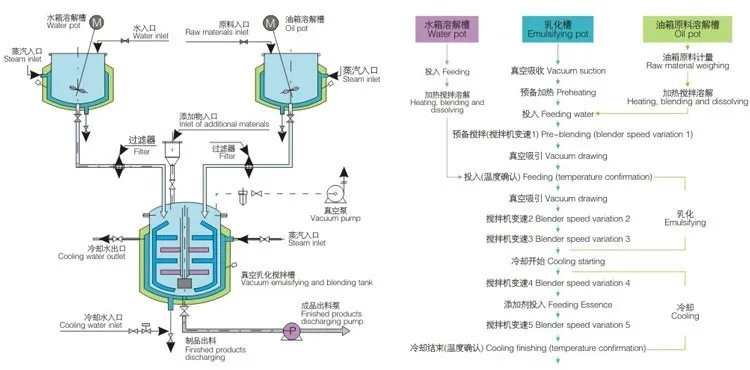

As we can see from the following sketch, raw material is prepared separately in the water pot and oil pot with processes like heating,blending and dissolving.  Then the oil would be sucked into the main pot for pre-blending,then draw vacuum again to prevent air into material.Afterwards,water will be feed and more blending including homogenizing would be implemented to emulsify.Finally, other essences can be put in during the cooling process.

Technical parameters


SPECIFICATIONS FOR ZJR-5 Vacuum Emulsifying Mixer 5L

Main Pot
Designed Volume(L)
6
Working capacity(L)
5
Scrapper Stirring Power(kw)
0.55
Scrapper Stirring speed(rpm)
0-86
Homogenizer Power(kw)
1.1
Electrical Heating(kw)
2
Homogenizer speed(rmp)
3500

Water Pot
Designed Volume(L)
3.35
Working capacity(L)
2.7
Scrapper Stirring Power(kw)
0.025
Scrapper Stirring speed(rpm)
1200
Electrical Heating(kw)
1

Oil Pot
Designed Volume(L)
3.35
Working capacity(L)
2.7
Scrapper Stirring Power(kw)
0.025
Scrapper Stirring speed(rpm)
1200
Electrical Heating(kw)
1

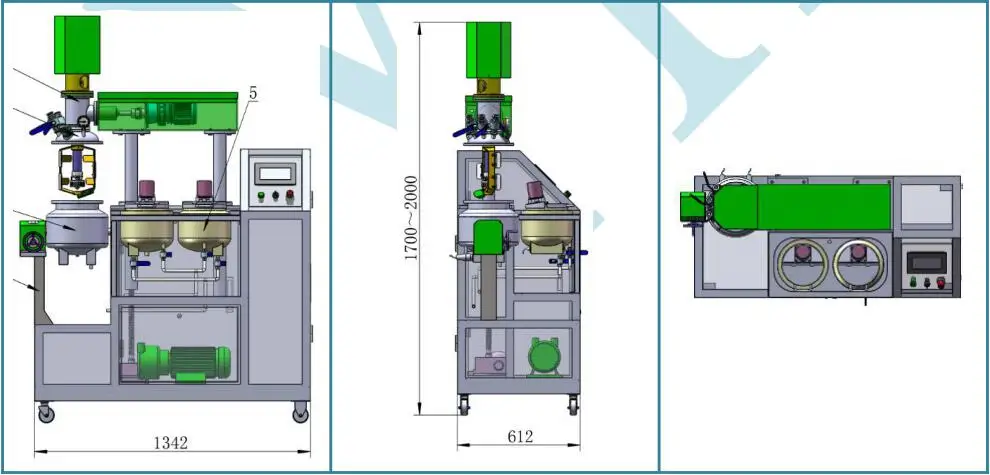

Dimension
Length*Width*Height(mm)
1100*620*1650-1950

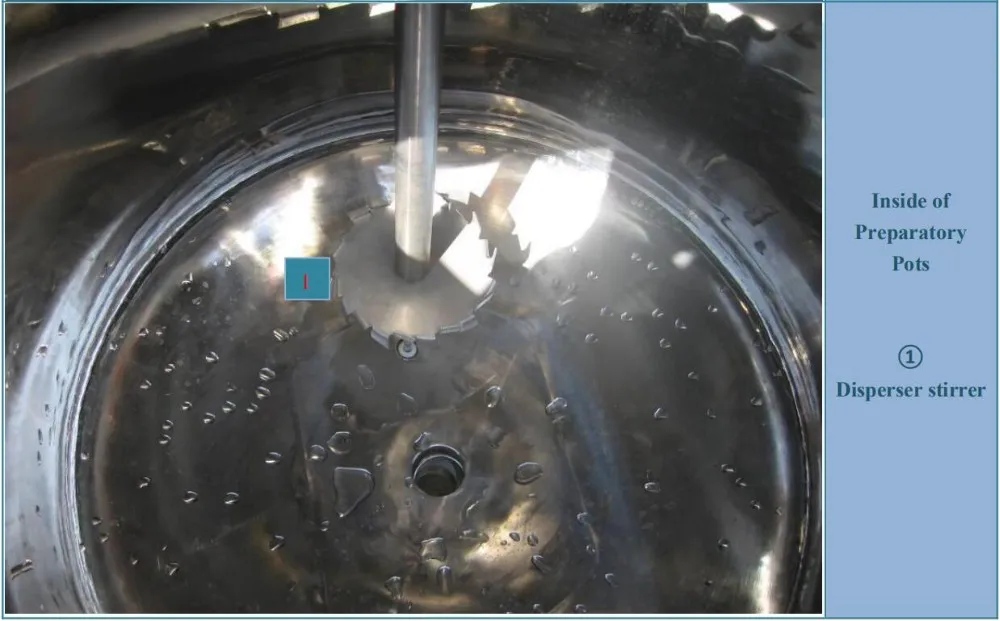

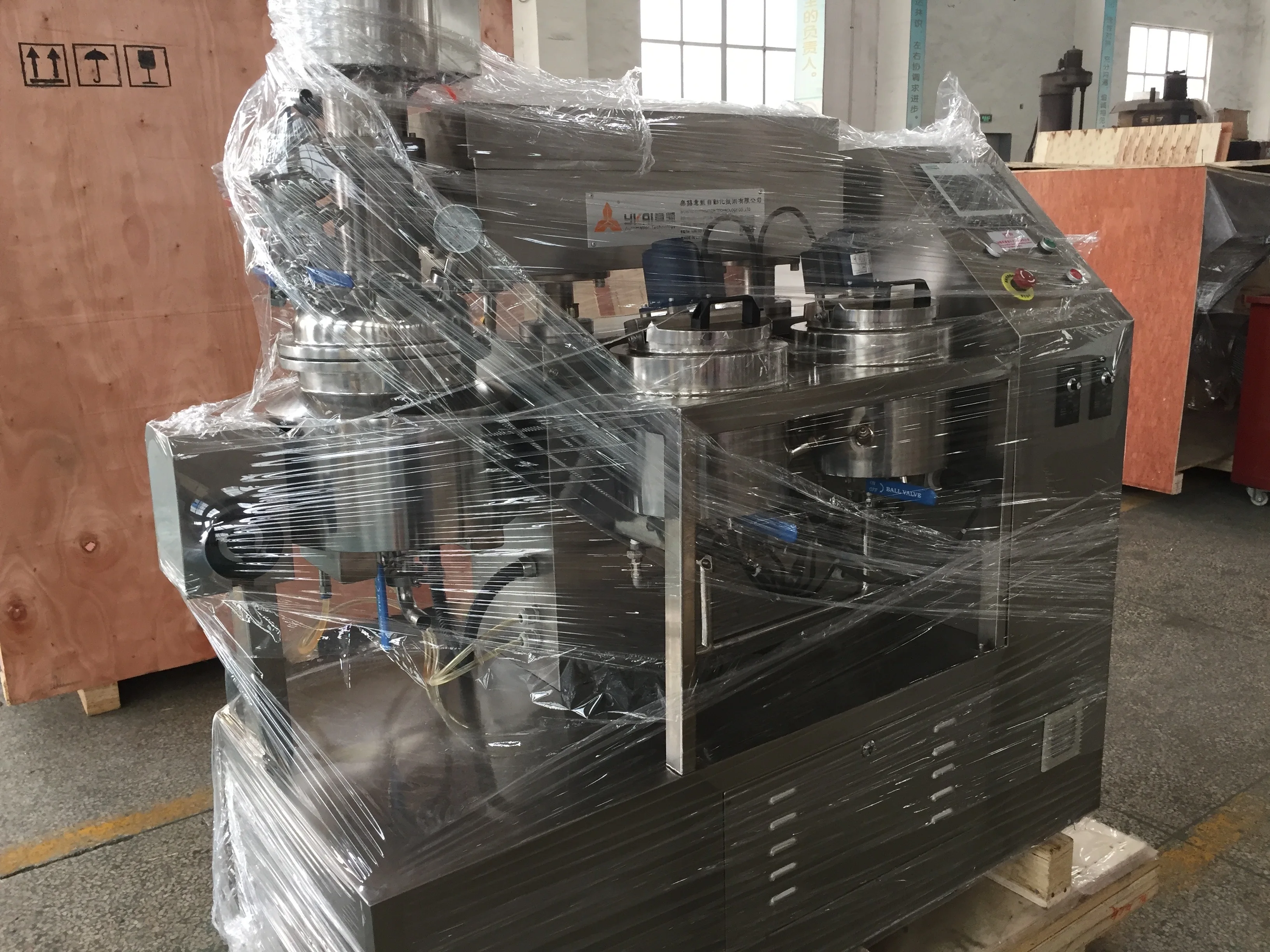

Detailed Images
Our Company

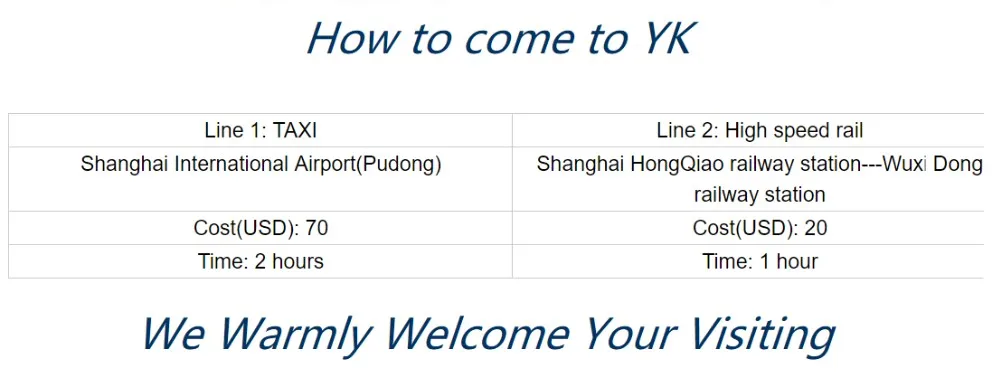

We sincerely welcome every client to come and visit our factory.

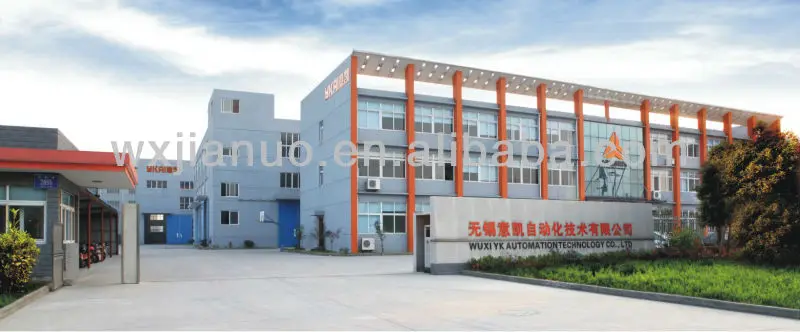

Our Factory

* Founded in 1998

* Committed to R&D

* Promote industrial upgrading

Our clients

* Spread over 100 countries and areas

* Constant and stable orders from old clients

* Approved good after-sell service

Certifications

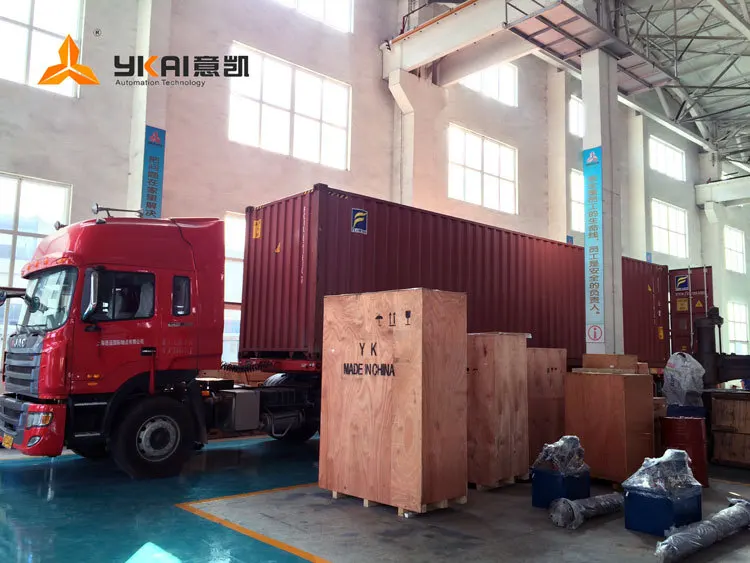

Packing & Delivery

Packaging:

Usually packing by plywood cases. Others depend on requirements.

Shipping

European Countries: 22-28 days
United States: East --13-16 days, West--21-28 days
Brazil: 30-40 days
Russia: 36 days
Asia Countries: 3-5 days

FAQ

1. Why your machine similar with other supplier?

We are an overseas-funded enterprise. We are manufacturer and had been in this industry for more than 17 years, with more than 9 years export experience. We design machines by ourselves with advanced technology. Appearance just a part of machine, Service and quality is more important than it.

2. I'm new in our industry, but I'm planning to setup a factory, What can I do?

We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.

3.What kind of machines can you supply to customer?

We could offer various kinds of machines and whole production line.

(1) Cream, paste Products,
In cosmetic industry: face cream, body cream, washing cream,vaseline etc
In food industry industry: sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc
In chemical industry:welding paste,ink, paint,pigment etc.
Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc

(2) Liquid products
shampoo, lotion, liquid soap, detergent,juice,solution etc.
Production line for them: RO water treatment – liquid wash mixer- – storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc

(3) Make-up products:
Lipstick, lip gloss, nail polish, marscara etc
Machines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc

(4) Adhesive products:
Instant glue, AB glue, silica gel, anaerobic adhesive,silicon, sealing etc.
Machines for them: double planet mixer, ribbon blender, tube filling and sealing machine, hydraulic distributing machine, cartridge filling machine etc

ღ For your inquiries, pleas kindly let us know:

1. What is your products? Cream, toothpaste, moisturizer, face cream, etc.

2. What is the capacity do you want for this vacuum emulsifying machine? 5L, 10L, 30L, 50L, 100L, 150L, 200L, etc.

3. Required heating method: electric heating or steam heating?

4. Required voltage and frequency of power supply? eg:380V 50Hz 3phase?


5.Required control mode: PLC control or Button control?

6. Requirement of Certificate (CE, CSA, or no need)

If you have any question about the product details or technical problems,please feel free to contact us anytime.
